Winder High Flow FRP Cartridge Filter Housing 8" 150 PSI, End Port/Side Port – 20/40/60 Inch
High flow filter housing - end port
High flow filter housing - side port
Winder® high flow FRP filter housing is designed for cartridge filters used in RO water treatment system. Our products are capable of building in high flow cartridge filters with sizes of 20", 40" and 60". Featured by easy installation and low maintenance cost, it has become the most popular design in the reverse osmosis system at home and abroad.
Compared with stainless steel filter housing, it is more resistant to strong-acid, strong base, bath solution, chlorine alkali, concentrate, landfill leachate and other special medium environment. High flow FRP filter housings are widely used in the applications of water pretreatment in membrane treatment system, electronics, electric power, metallurgy, chemical industry, food, beverage, brackish water, seawater desalination and separation of landfill leachate.
Warranty: two years warranty for housing body against industry defects, one year warranty for spare parts.
Products
- End Port
- Side Port
End Port

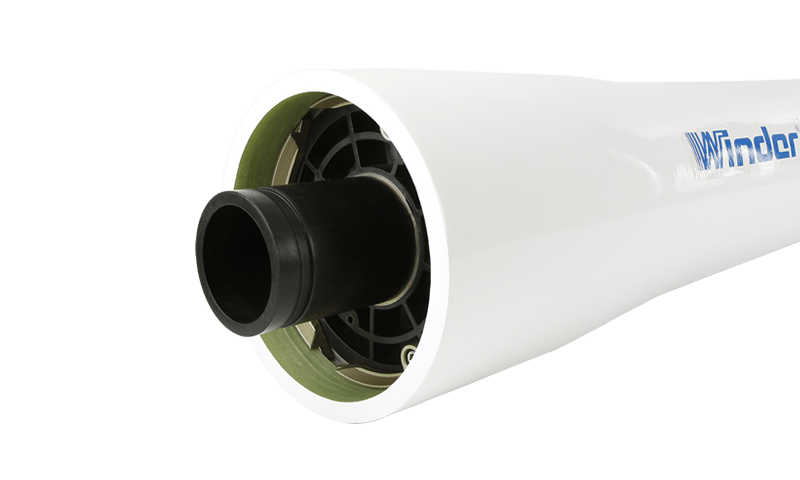

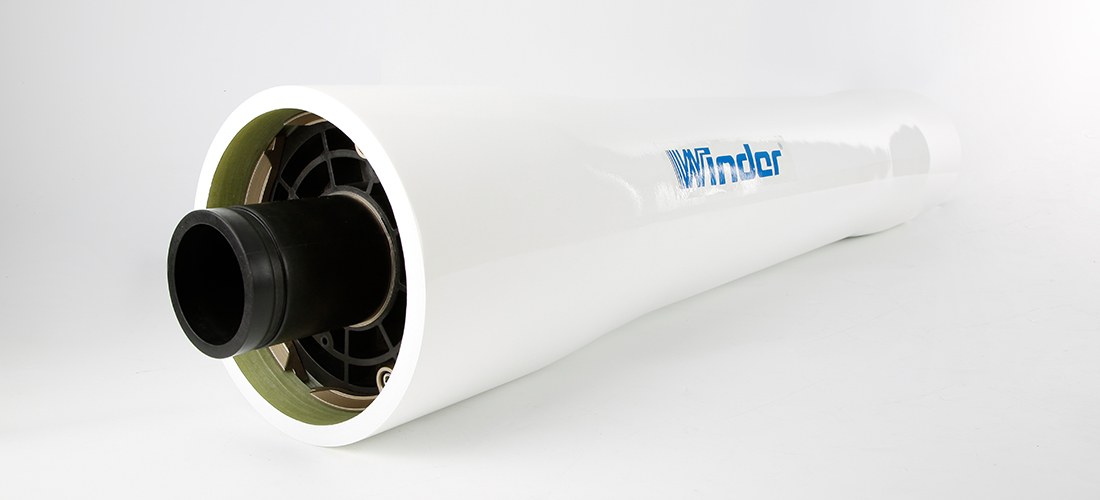

High flow FRP filter housing with end port W80E150-40

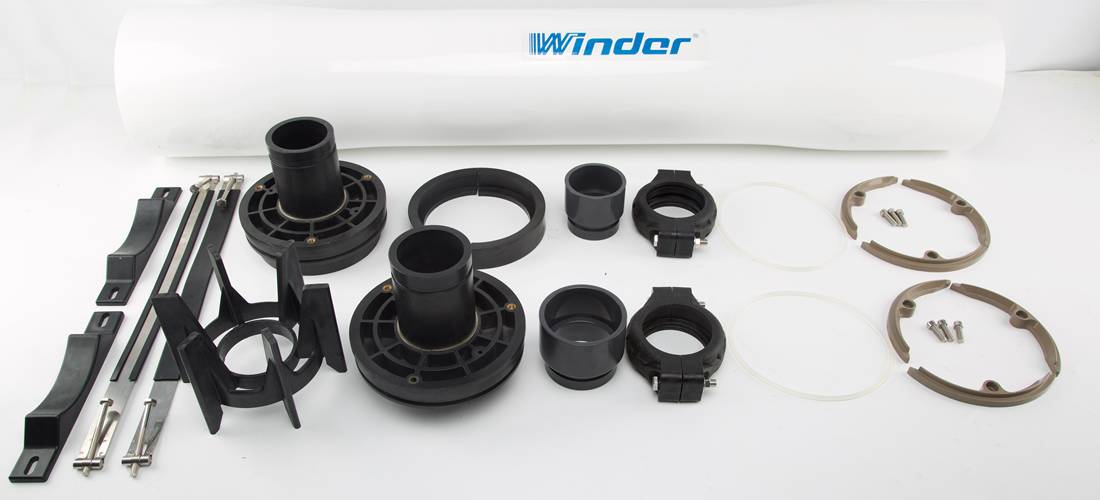

White high flow housing W80E150-40 and all spare parts

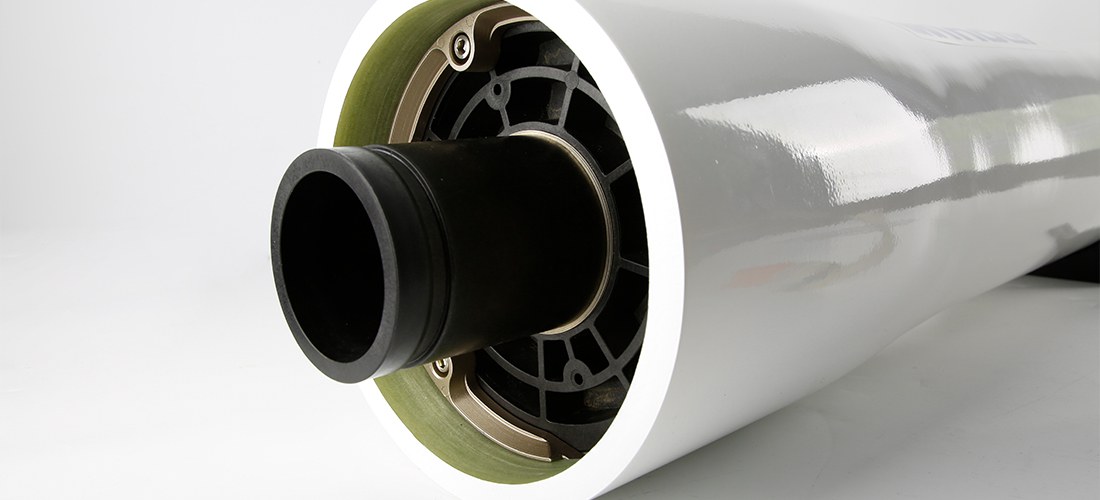

White high flow housing W80E150-40 end port details
Side Port
High flow FRP filter housing with side port W80S150

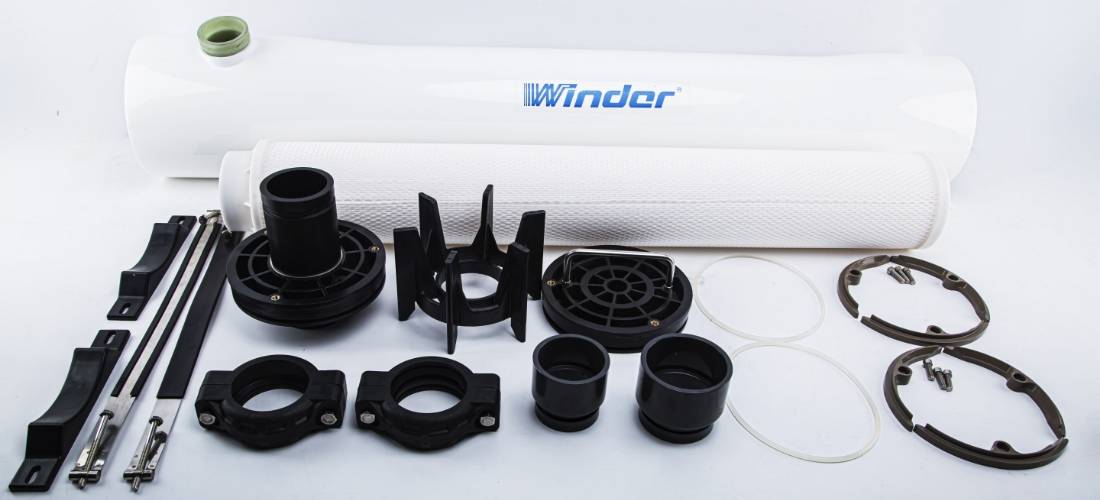

White high flow housing W80S150 and all spare parts

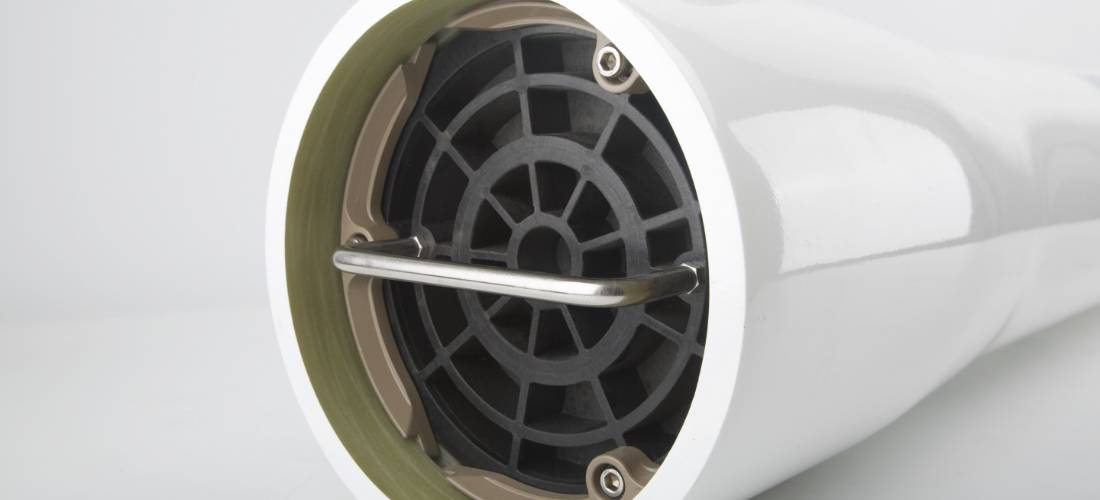

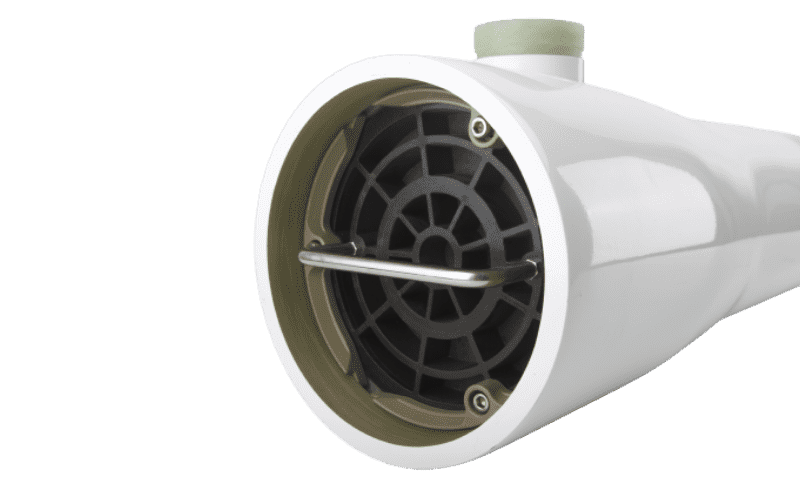

White high flow housing W80S150 side port details
Feature
- Advanced design for water pre-treatment.
- High flow rate capacity in reverse osmosis system.
- More resistant to corrosion than stainless steel.
- Versatile for commercial and industrial applications.
- Low operating and maintenance costs.
- Test every FRP filter housing, not sampling.
Specification
- End Port
- Side Port

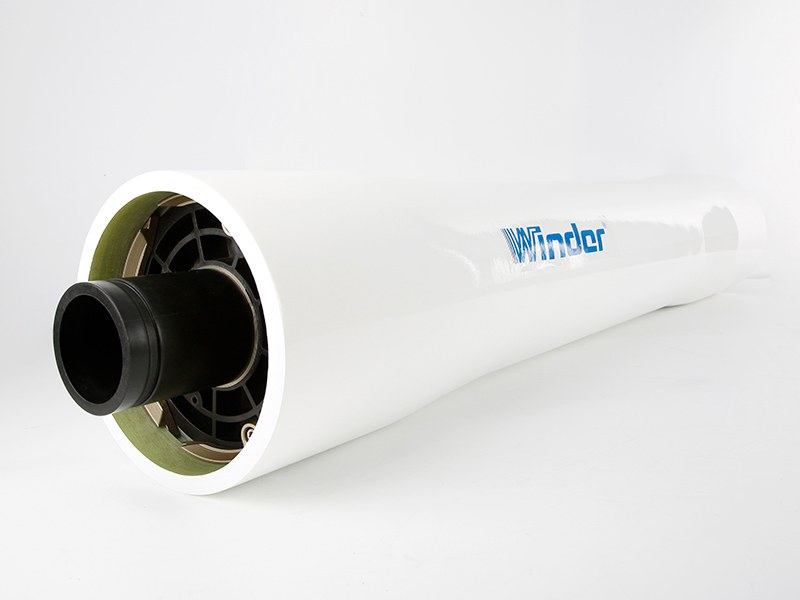

White high flow housing W80E150-40

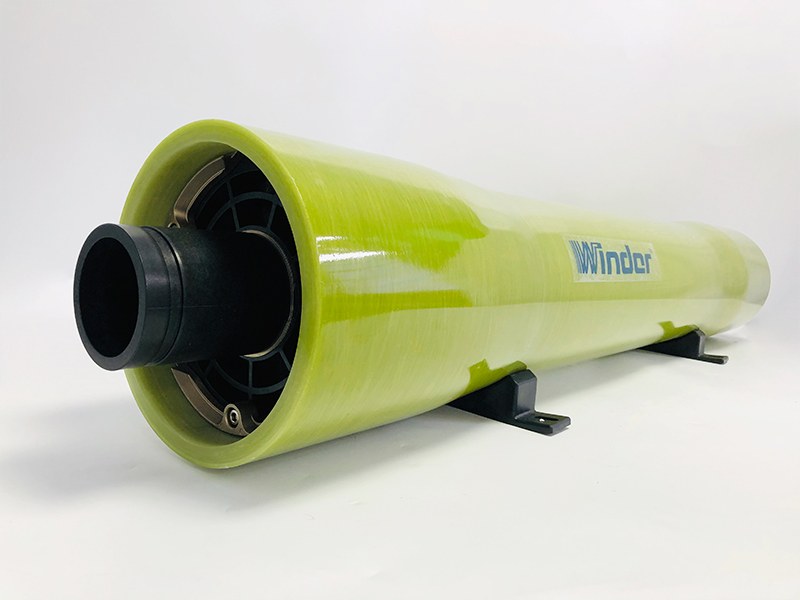

Original high flow housing W80E150-40
High flow cartridge filter element installation
| Model | Weight (kg) | Dimension (m) | CBM | Output flow rate (T/H) |
|---|---|---|---|---|
| W80E150-20 housing | 18 | 0.25*0.25*0.789 | 0.057 | 15-25 |
| W80E150-40 housing | 21 | 0.25*0.25*1.297 | 0.088 | 30-50 |
| W80E150-60 housing | 25 | 0.25*0.25*1.805 | 0.119 | 50-70 |
| Model | Weight (kg) | Dimension (m) | CBM |
|---|---|---|---|
| 20 inch element | 1.2 | 0.16*0.16*0.508 | 0.013 |
| 40 inch element | 2.4 | 0.16*0.16*1.016 | 0.026 |
| 60 inch element | 3.6 | 0.16*0.16*1.524 | 0.039 |
|
Materials
Filtration accuracy: 1, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100 um. Life time: depends on the water quality. Usually around 3 months. |
Winder FRP high flow cartridge filter housing W80S150 side port and end port comparison

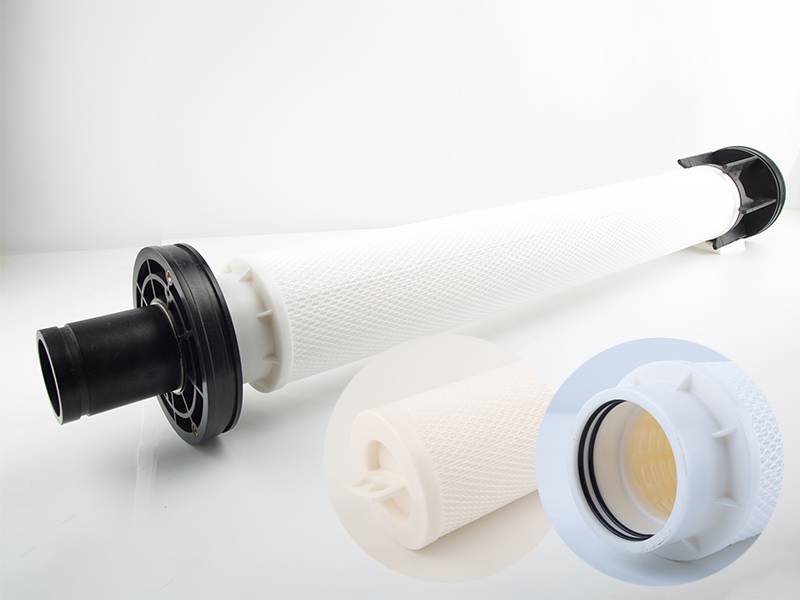

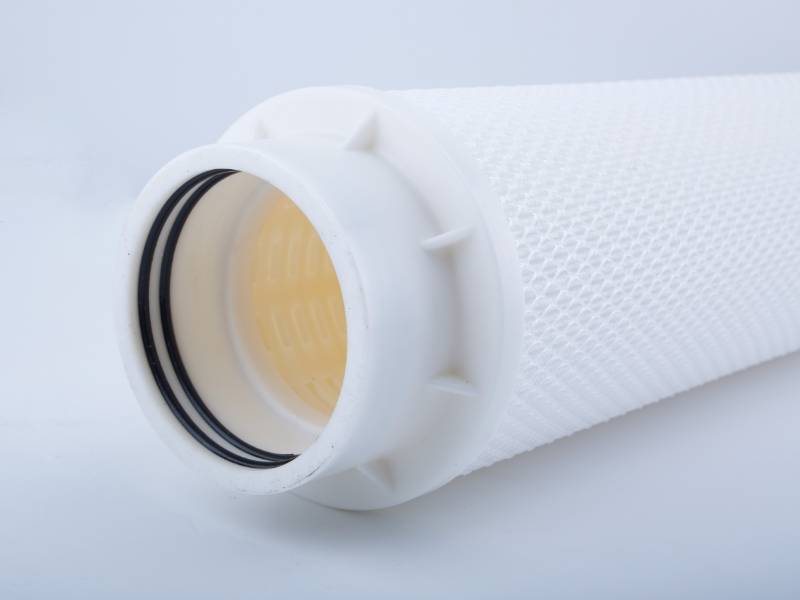

High flow cartridge filter element and details
| Model | Weight (kg) | Dimension (m) | CBM | Output flow rate (T/H) |
|---|---|---|---|---|
| W80S150-20 housing | 18 | 0.25*0.25*0.84 | 0.056 | 10–15 |
| W80S150-40 housing | 23 | 0.25*0.25*1.347 | 0.088 | 25–30 |
| W80S150-60 housing | 28 | 0.25*0.25*1.847 | 0.119 | 35–45 |
| Model | Weight (kg) | Dimension (m)/4 pcs | CBM/4 pcs |
|---|---|---|---|
| 20-inch element | 1.2 | 0.36*0.38*0.6 | 0.082 |
| 40-inch element | 2.4 | 0.36*0.38*1.1 | 0.150 |
| 60-inch element | 3.6 | 0.4*0.38*1.65 | 0.251 |

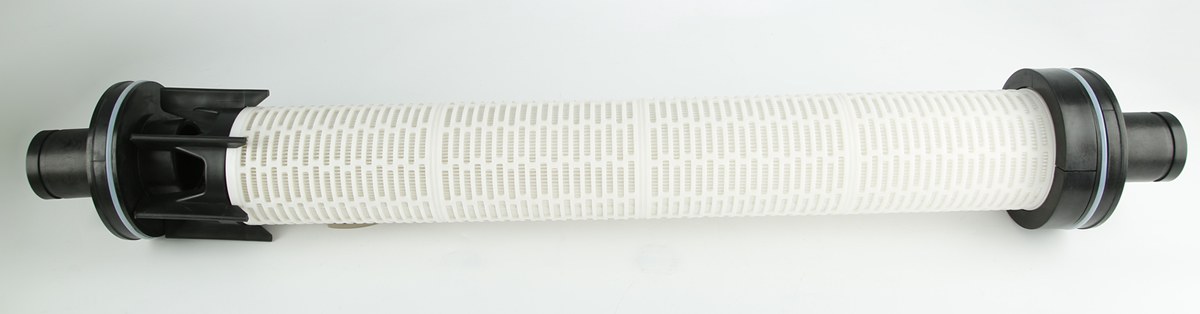

High Flow Cartridge Filter Element (PAKE)
- Filter material: polypropylene
- Support material: Polypropylene
- End cap material: reinforced polypropylene
Filtration accuracy: 1 micro, 5 micron
Life time: depending on the water quality. Usually about 3 months
Video
This video show how to use extractor remove end cap from housing.
Fill below form order now.
Winder high flow FRP filter housing installation procedures – end port
Winder high flow FRP Cartridge filter housing installation – side port
Gansu chemical plant water process engineering. May 2014
Biel Crystal water treatment engineering. May 2015
April Fine Paper water treatment engineering. May 2015
Daya Bay Cnooc's refinery project. July 2016
Qingdao wastewater reclamation project. Aug 2016
Dalian Hengli petrochemical water treatment project. Nov 2017
DTRO FRP housing for landfill leachate treatment project
DTRO FRP housing for landfill leachate treatment project
Beijing wastewater reclamation treatment project. Nov 2021
