Arclion Head Opening Frp Tankg
Advantage:
Working temperature: 1 °C to 49 °C (34 °F to 120 °F)
More than 100,000 times of fatigue test, burst test with 4 times of its design pressure
Certified by ISO 9001, CE
No leakage

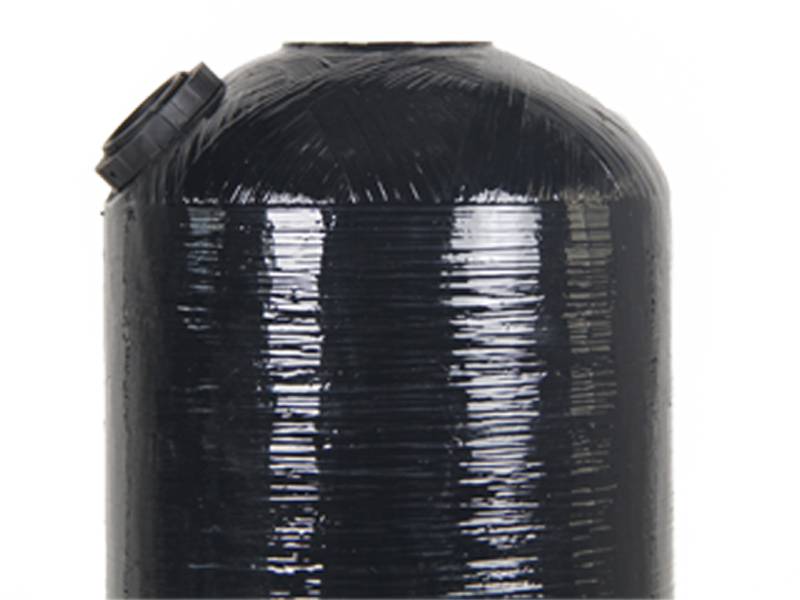

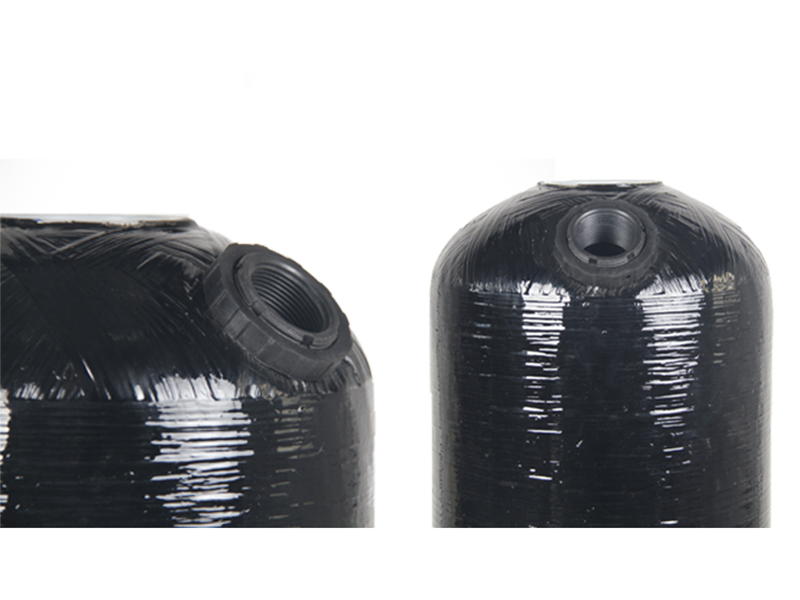

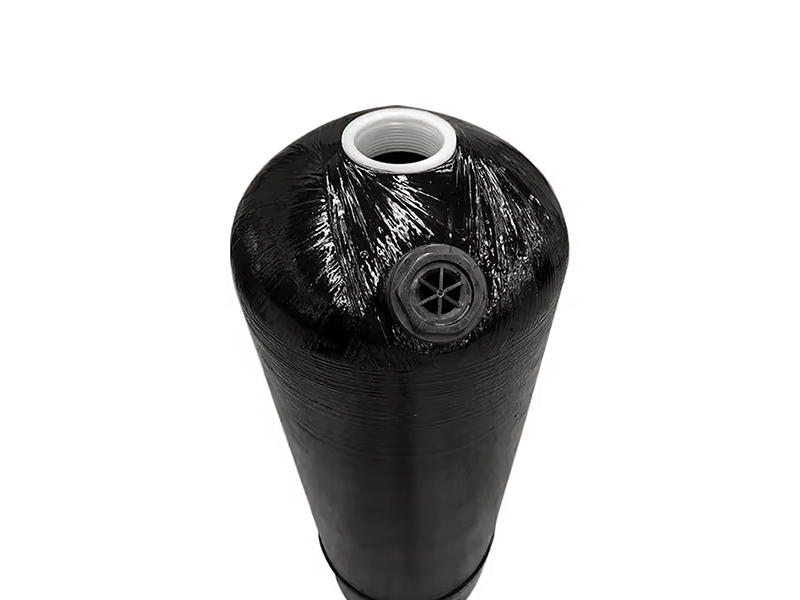

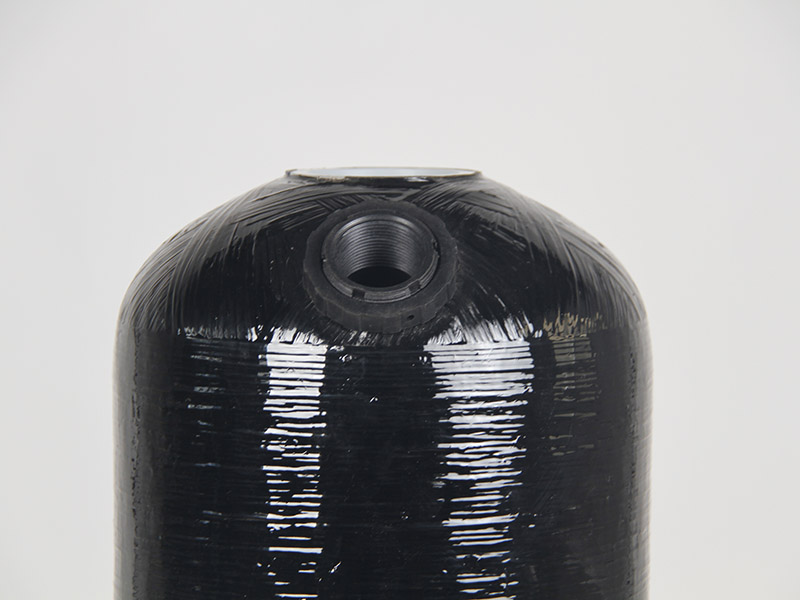

The tank's head features an opening with a diameter of 1 1/4"-11.5 NPSM. The head opening componentis made of durable alloy ABS material, with an integrated 0-ring seal to enhance leak-proof performance
This design facilitates easier and more efficient media loading while providing reliable protection againstleakage.
Details
Specification
| Serial number |
Model number |
Opening size | diameter (mm) | Altitude (mm) |
volume (Ltrs) | base | ||
| Top | bottom | haed | ||||||
| 1 | 10*35 | 2.5" | 无 | 1%-11.5NPSM | 258 | 873 | 38.8 | Standard |
| 2 | 10*44 | 2.5" | 无 | 1%-11.5NPSM | 258 | 1121 | 50.0 | Standard |
| 3 | 10*54 | 2.5" | 无 | 1%-11.5NPSM | 258 | 1366 | 62.5 | Standard |
| 4 | 12*36 | 2.5" | 无 | 1%-11.5NPSM | 306 | 895 | 55.6 | Standard |
| 5 | 12*48 | 2.5" | 无 | 1%-11.5NPSM | 307 | 1205 | 77.5 | Standard |
| 6 | 12*52 | 2.5" | 无 | 1%-11.5NPSM | 307 | 1325 | 85.3 | Standard |
| 7 | 12*65 | 2.5" | 无 | 1%-11.5NPSM | 307 | 1656 | 108.5 | Standard |
| 8 | 12*44 | 2.5" | 无 | 1%-11.5NPSM | 335 | 1090 | 81.1 | Standard |
| 9 | 13*54 | 2.5" | 无 | 1%-11.5NPSM | 334 | 1340 | 102.3 | Standard |
| 10 | 14*52 | 2.5" | 无 | 1%-11.5NPSM | 395 | 1331 | 115.3 | Standard |
| 11 | 14*65 | 2.5" | 无 | 1%-11.5NPSM | 395 | 1656 | 146.8 | Standard |
| 12 | 16*52 | 2.5" | 无 | 1%-11.5NPSM | 418 | 1317 | 150.1 | Standard |
| 13 | 16*65 | 2.5" | 无 | 1%-11.5NPSM | 418 | 1660 | 191.7 | Standard |
