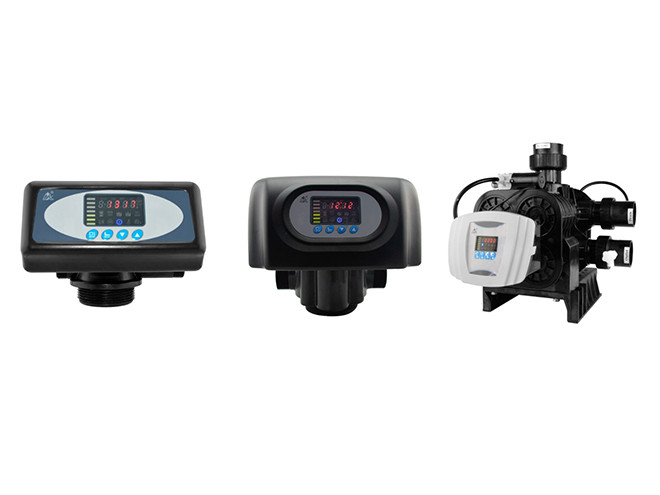

Runxin Automatic Filter Valves Achieve Intelligent & Efficient Filter

Compared with the manual filter control valve which needs manually switch station, the Runxin automatic filter control valve can realize automatic station switching, filtering, backwashing and washing functions by setting time or flow parameters, and does not need labor waiting and improves the work efficiency.

The automatic filter valve defaults to the LED display and some models have an optional LCD screen.

The water capacity of 4-50 m3/h can better match the different needs of customers.

Table 1: Popular Models & Data Sheet of Runxin Automatic Filter Valves

Model

Water Capacity

Running Model

Mount Type

Inlet/Outlet

Drain

Base

Riser Pipe

Available Tank Size

Working Pressure

Water Temperature

Turbidity

Media

Input Charge

Transformer Output

53502 (F71B1)

2 m3/h

Time Clock

Top Mount

3/4"M

2.5"-8NPSM

1.05" O.D.

6"–10"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 12V/1.5A

53602 (F71B3)

Meter

53502B (F71G1)

2 m3/h

Time Clock

Top Mount

3/4"M

2.5"-8NPSM

1.05" O.D.

6"–10"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 12V/1.5A

56603 (F67M)

3 m3/h

Meter

Top Mount

3/4"M

2.5"-8NPSM

1.05" O.D.

6"–10"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 12V/1.5A

53504 (F67C1)

4 m3/h

Time Clock

Top Mount

1"F

2.5"-8NPSM

1.05" O.D.

6"–14"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 12V/1.5A

53604 (F67C3)

Meter

53504S (F67B1)

4 m3/h

Time Clock

Top Mount

1"F

2.5"-8NPSM

1.05" O.D.

6"–14"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 12V/1.5A

53604S (F67B3)

Meter

53504B (F67G1)

4 m3/h

Time Clock

Top Mount

1"F

2.5"-8NPSM

1.05" O.D.

6"–14"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 12V/1.5A

53504C (F67I1)

4 m3/h

Time Clock

Top Mount

1"F

2.5"-8NPSM

1.05" O.D.

6"–14"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 12V/1.5A

52504E (F67K)

4 m3/h

Time Clock

Top Mount

1"M

1/2"M

2.5"-8NPSM

1.05" O.D.

6"–14"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 12V/1.5A

53506S (F67B1-A)

4 m3/h

Time Clock

Top Mount

1"F

2.5"-8NPSM

1"D-GB

6"–14"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 12V/1.5A

53606S (F67B3-A)

Meter

53508 (F134A1)

8 m3/h

Time Clock

Top Mount

1.5"M

4"-8UN

1.25"D-GB or 1.66" O.D.

16"–18"

0.2–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 24V/1.5A

53608 (F134A3)

Meter

53510 (N75A1)

10 m3/h

Time Clock

Top Mount

2"M

4"-8UN

1.5"D-GB or 1.9" O.D.

6"–21"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 24V/1.5A

53610 (N75A3)

Meter

53510B (N75B1)

10 m3/h

Time Clock

Top/Side Mount

2"M

4"-8UN

1.5"D-GB or 1.9" O.D.

6"–21"

0.15–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 24V/1.5A

53610B (N75B3)

Meter

53515 (F99B1)

15 m3/h

Time Clock

Top/Side Mount

2"M

4"-8UN

1.5"D-GB or 1.9" O.D.

10"–30"

0.2–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 24V/1.5A

53615 (F99B3)

Meter

53518 (N77B1)

18 m3/h

Time Clock

Top Mount

2"M

4"-8UN

1.5"D-GB or 1.9" O.D.

30"–36"

0.2–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 24V/1.5A

53520 (F95B1)

21.6 m3/h

Time Clock

Side Mount

2"M

Side mount top and bottom distributor 2"M

30"–36"

0.2–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 24V/1.5A

53620 (F95B3)

Meter

53520T (F111B1)

20 m3/h

Time Clock

Top Mount

2"M

4"-8UN

2"D-GB

30"–36"

0.2–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 24V/1.5A

53620T (F111B3)

Meter

53540B (F112B1)

40 m3/h

Time Clock

Side Mount

DN65

Side mount, top and bottom distributor DN80

36"–48"

0.2–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 24V/4.0A

53640B (F112B3)

Meter

53550 (F96B1)

50 m3/h

Time Clock

Side Mount

DN80

Side mount, top and bottom distributor DN100

36"–48"

0.2–0.6 MPa

5–50 °C

< 20 FTU

Sand / Activated Carbon

AC 100V – 240V / 50–60 Hz

DC 24V/4.0A

Features：

Structure Features
●Indication of long time power cut, data saved after power off (Saved for three days).
●No hard water bypass in rising cycle.
●Remote handling connector b-01(02).
●Backwash, fast rinse frequencies setting F-00, service one time, backwash and fast
rinse several times.
●Remote signal input connector.
●Interlock function for contemporary system and individual rising.
●Start rising by days or hours.
●F77/F95/F111 have two valve cores, one is for controlling water in, the other is for out.
●Time type or meter type is for optional
●F77/F95 with 485 port are optional.

Applications
●Residential Filter System(F71B, F67B).
●A/C filter or sand filter system for RO pretreatment system.
