Winder 4" FRP RO Membrane Housing – Smooth Inner Surface, Colorful Appearance

White membrane housing with 4" inner diameter made in Winder. There are side port and end port optional.

4" FRP membrane housings

Winder^® 4" FRP RO membrane housing is the preferred choice for water treatment in the membrane process. 150 PSI to 1200 PSI, side port or end port.

Winder FRP RO housing since 2006:

100% quality assurance test with 1.1 times of working pressure maintained for at least five minutes, we could guarantee the safety and no leakage. Not sampling test.
Quality Assurance
- Burst test with 6 times of its design pressure;
- 100000 times cycle test.
Warranty
- Two years warranty for housing body against industry defects.
- One year warranty for spare parts.

Winder^® series FRP membrane housings are applicable to multiple standard membrane elements, E.g. Filmtec, Hydranautics, Osmonics, Koch, Toray, CSM, Vontron and BDX, etc. And non-standard products could be tailor-made to meet the demand for your special projects.

Tools: End cap extractor.

Product

4 Inch End Port
4 Inch Side Port

W40E300

W40E450

W40E600

W40E1000

W40E1200

W40E300

4 inch end port membrane housing with a working pressure 300 psi and its spare parts

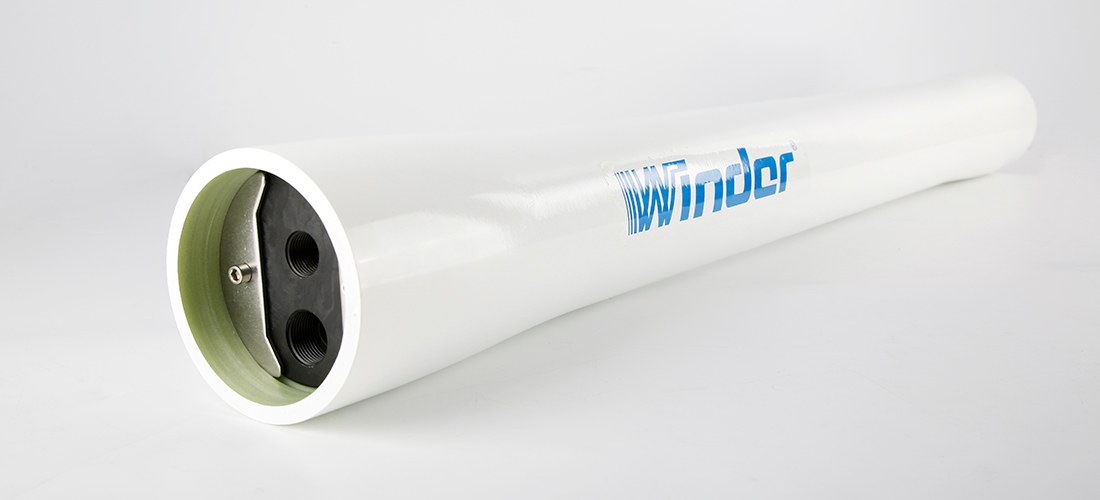

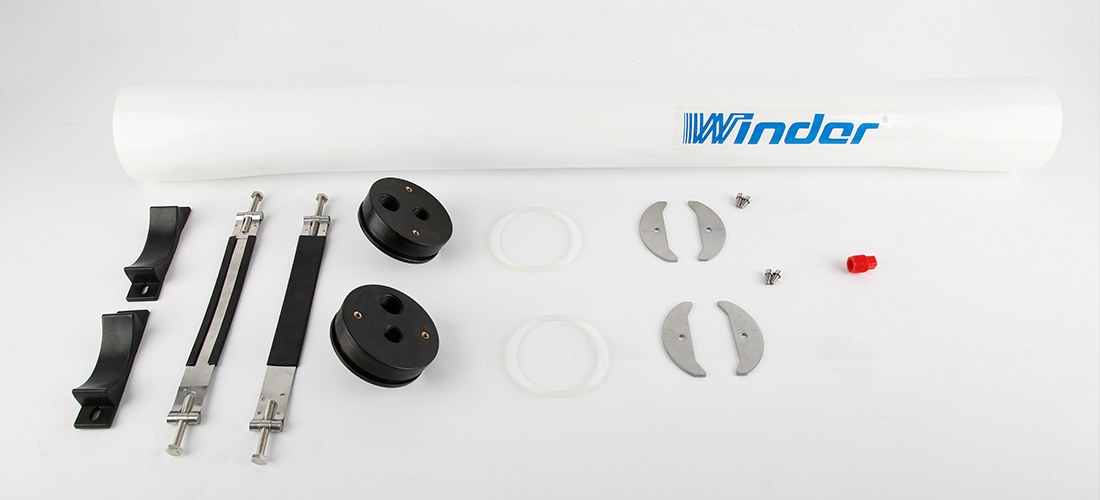

W40E450

4 inch end port membrane housing with a working pressure 450 psi and its spare parts

W40E600

4 inch end port membrane housing with a working pressure 600 psi and its spare parts

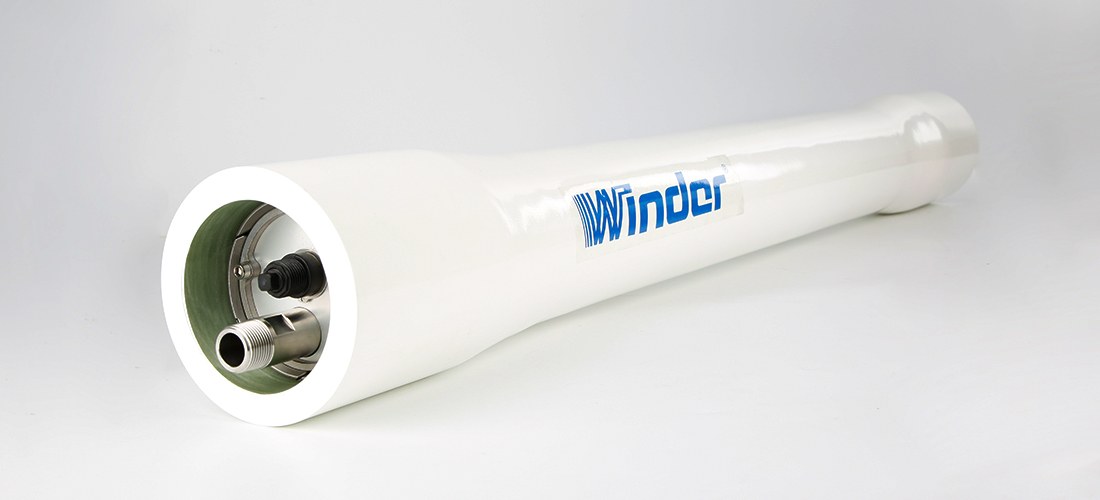

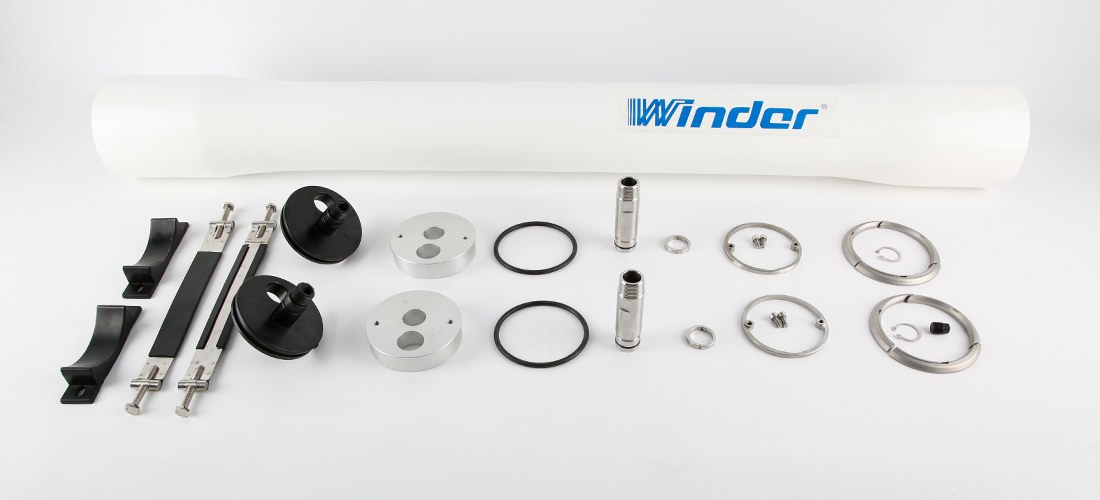

W40E1000

4 inch end port membrane housing with a working pressure 1000 psi and its spare parts

W40E1200

4 inch end port membrane housing with a working pressure 1200 psi and its spare parts

W40S300

W40S450

W40S600

W40S1000

W40S1200

W40S300

4 inch side port membrane housing with a working pressure 300 psi and its spare parts

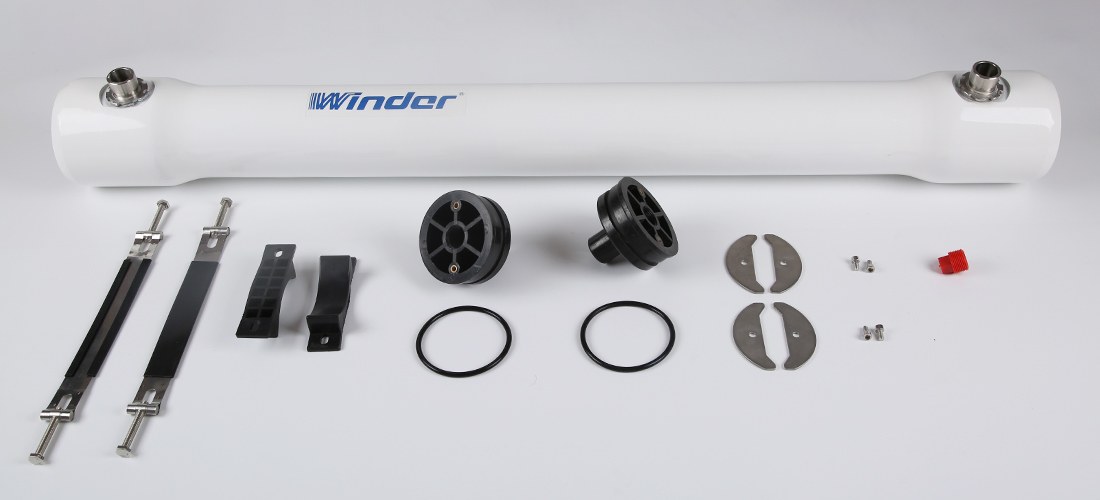

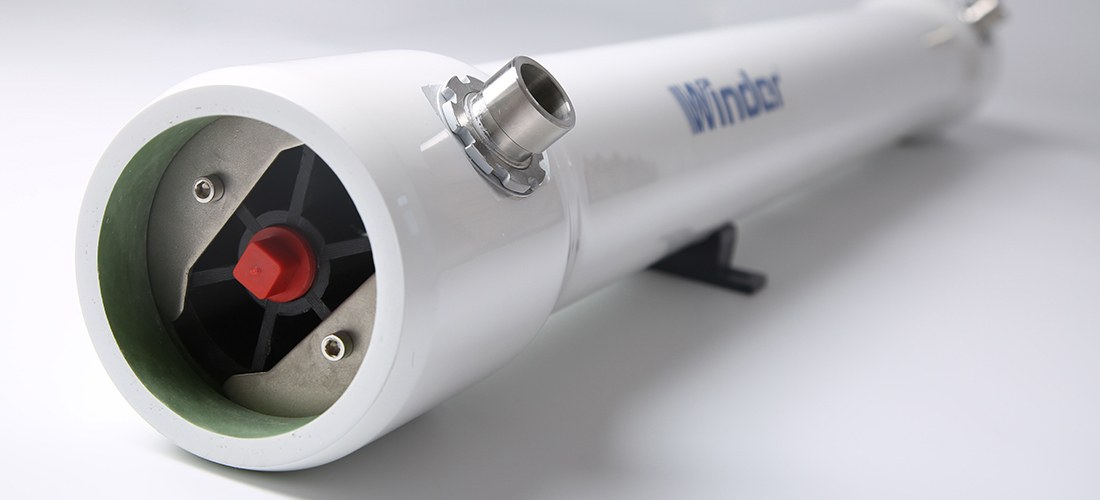

W40S450

4 inch side port membrane housing with a working pressure 450 psi and its spare parts

W40S600

4 inch side port membrane housing with a working pressure 600 psi and its spare parts

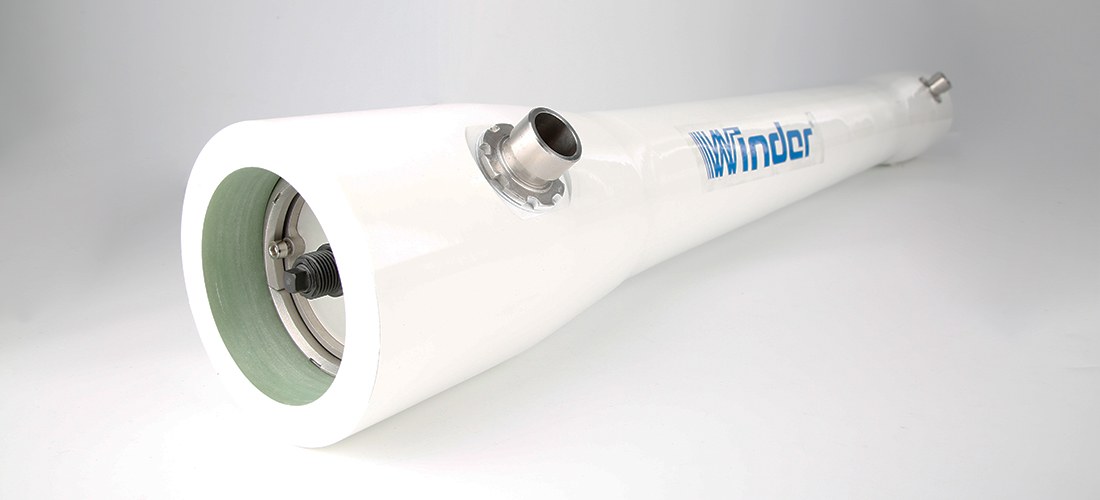

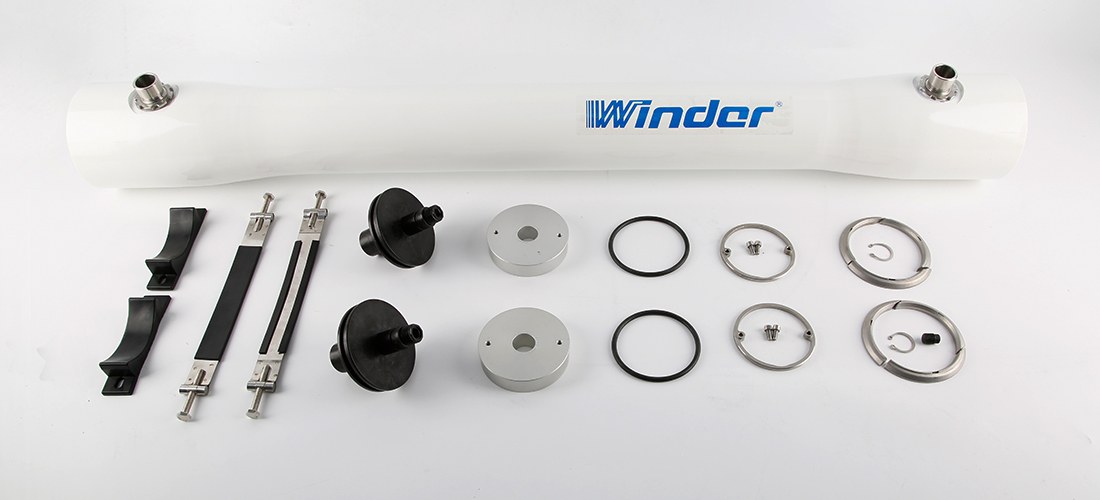

W40S1000

4 inch side port membrane housing with a working pressure 1000 psi and its spare parts

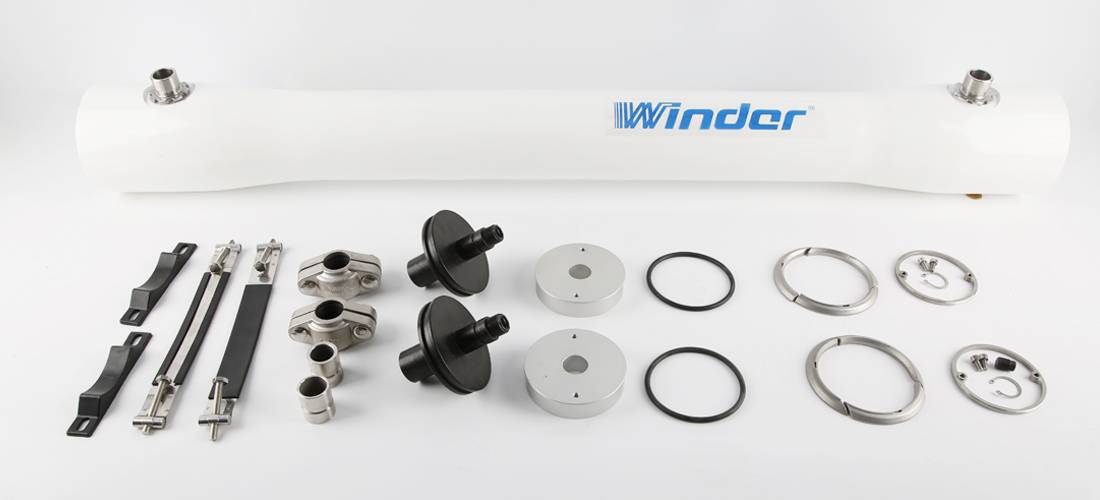

W40S1200

4 inch side port membrane housing with a working pressure 1200 psi and its spare parts

Feature

Composite construction is anti-wearable
Test every membrane housing, not sampling
Multi-porting option
Well heat-insulting property
No rusting,anti-oxidation & aging
Unique quick locking system
Smooth inner wall and brightly surface
Standard and non-standard are all available

Specification

4" end entry
4" side entry

Specification of 4" End Entry
Model No.	Design Pressure (PSI)	Operating Temperature	Connection	Element Length
W40E300	300	-10 °C – 49 °C	End port	40" × (1–4)
W40E450	450	-10 °C – 49 °C	End port	40" × (1–4)
W40E600	600	-10 °C – 49 °C	End port	40" × (1–4)
W40E1000	1000	-10 °C – 49 °C	End port	40" × (1–4)
W40E1200	1200	-10 °C – 49 °C	End port	40" × (1–4)

Specification of 4" Side Entry
Model No.	Design Pressure (PSI)	Operating Temperature	Connection	Element Length
W40S300	300	-10 °C – 49 °C	Side port	40" × (1–4)
W40S450	450	-10 °C – 49 °C	Side port	40" × (1–4)
W40S600	600	-10 °C – 49 °C	Side port	40" × (1–4)
W40S1000	1000	-10 °C – 49 °C	Side port	40" × (1–4)
W40S1200	1200	-10 °C – 49 °C	Side port	40" × (1–4)

Application

4" FRP membrane housing is professional for industrial waste water treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.
