Runxin Economical Control Valves Reduces Costs While Maintaining Efficiency
In order to meet the requirements of water treatment agents and distributors for moderate prices, ease of use, durability and cost effectiveness, our company has developed the P series and Q series of water treatment control valves in succession.
Through continuous development and innovation in design, P series and Q series control valves are designed to reduce costs while maintaining efficiency.
The P and Q series control valves are widely used in domestic filtration and softening systems, boiler feed water softening systems, ion exchange equipment and reverse osmosis pre-treatment equipment.
Table 1: Popular Models & Data Sheet of Runxin Economical P Series Control Valves
| Model | Water Capacity | Running Model | Regeneration Type | Mount Type | Inlet/Outlet | Drain | Brine Tank Connector | Base | Riser Pipe | Available Tank Size | Working Pressure | Water Temperature | Turbidity | Input Charge | Output Charge |
| 54502 (F71P1) | 2 m3/h | Time Clock | - | Top Mount | 3/4"M | 3/4"M | - | 2.5"-8NPSM | 1.05" O.D. | 6"–10" | 0.15–0.6 MPa | 5–50 °C | < 20 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 64502 (F65P1) | 2 m3/h | Time Clock | Downflow | Top Mount | 3/4"M | 1/2"M | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 6"–10" | 0.15–0.6 MPa | 5–50 °C | < 5 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 64602 (F65P3) | Meter | ||||||||||||||
| 74502 (F69P1) | 2 m3/h | Time Clock | Upflow | Top Mount | 3/4"F | 1/2"M | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 6"–10" | 0.15–0.6 MPa | 5–50 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 74602 (F69P3) | Meter | ||||||||||||||
| 74502Y (F69P1Y) | 2 m3/h | Time Clock | Upflow | Top Mount | 3/4"M | 1/2"M | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 6"–10" | 0.15–0.6 MPa | 5–50 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 54504 (F67P1) | 4 m3/h | Time Clock | - | Top Mount | 1"F | 1"F | - | 2.5"-8NPSM | 1.05" O.D. | 6"–14" | 0.15–0.6 MPa | 5–50 °C | < 20 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 64504 (F63P1) | 4 m3/h | Time Clock | Downflow | Top Mount | 1"M | 1/2"M | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 6"–14" | 0.15–0.6 MPa | 5–50 °C | < 5 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 64604 (F63P3) | Meter | ||||||||||||||
| 74504 (F68P1) | 4 m3/h | Time Clock | Upflow | Top Mount | 1"M | 1/2"M | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 6"–14" | 0.15–0.6 MPa | 5–50 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 74604 (F68P3) | Meter | ||||||||||||||
| 74504Y (F68P1Y) | 4 m3/h | Time Clock | Upflow | Top Mount | 1"M | 1/2"M | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 6"–14" | 0.15–0.6 MPa | 5–50 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |

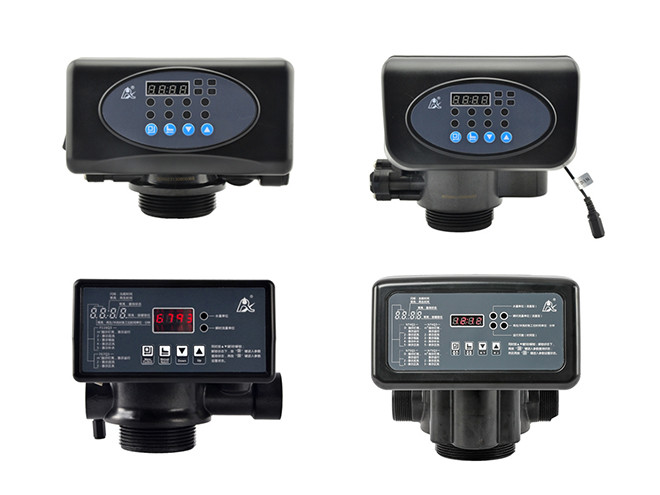

P Series Control Valve
Structure Features
●Locate by optcupler, more stable performance. F63P, F67P and F68P adopt the same locating board, while F65P, F69P and F71P use the same locating board. They all use the same main control board.
●Hermetic head faces structure, no hard water bypass when regeneration cycle.
●When electrical service recover, program run one cycle then locate at the previous position.
●Cheaper and simpler.
●Indicator display
Applications
●Residential Softener or Filter system.
●Boiler Softener, lon-Exchange Equipment.
Q Series Control Valve
Structure Features
●Integrate main board and display board on one board.
●Four digital display.
●Has interlock connector.
●Has signal output connector.
●Parameters will be saved after power off.
Applications
●Residential Softener or Filter system.
●Boiler Softener, lon-Exchange Equipment.
Table 2: Popular Models & Data Sheet of Runxin Economical Q Series Control Valves
| Model | Water Capacity | Running Model | Regeneration Type | Mount Type | Inlet/Outlet | Drain | Brine Tank Connector | Base | Riser Pipe | Available Tank Size | Working Pressure | Water Temperature | Turbidity | Input Charge | Output Charge |
| 55502 (F71Q1) | 2 m3/h | Time Clock | - | Top Mount | 3/4"M | 3/4"M | - | 2.5"-8NPSM | 1.05" O.D. | 6"–10" | 0.15–0.6 MPa | 5–50 °C | < 20 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.0A |
| 55602 (F71Q3) | Meter | 6"–10" | |||||||||||||
| 75502 (F69Q1) | 2 m3/h | Time Clock | Upflow | Top Mount | 3/4"M | 3/4"NPT | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 6"–10" | 0.15–0.6 MPa | 5–50 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.0A |
| 75602 (F69Q3) | Meter | ||||||||||||||
| 65503 (F117Q1) | 2 m3/h | Time Clock | Downflow | Top Mount | 3/4"F | 3/4"NPT | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 6"–10" | 0.15–0.6 MPa | 5–50 °C | < 5 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.0A |
| 65603 (F117Q3) | Meter | ||||||||||||||
| 55504 (F67Q1) | 4 m3/h | Time Clock | - | Top Mount | 1"F | 1"F | - | 2.5"-8NPSM | 1.05" O.D. | 6"–10" | 0.15–0.6 MPa | 5–45 °C | < 20 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 55604 (F67Q3) | Meter | ||||||||||||||
| 75504 (F68Q1) | 4 m3/h | Time Clock | Upflow | Top Mount | 1"M | 3/4"NPT | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 6"–14" | 0.15–0.6 MPa | 5–45 °C | < 2 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 75604 (F68Q3) | Meter | ||||||||||||||
| 65505 (F116Q1) | 4 m3/h | Time Clock | Downflow | Top Mount | 1"M | 3/4"NPT | 3/8"M | 2.5"-8NPSM | 1.05" O.D. | 6"–14" | 0.15–0.6 MPa | 5–45 °C | < 5 FTU | AC 100V – 240V 50–60 Hz | DC 12V/1.5A |
| 65605 (F116Q3) | Meter | ||||||||||||||
| 65510 (N74Q1) | 10 m3/h | Time Clock | Downflow | Top Mount | 2"M | 1"M | 1/2"M | 4"-8UN | 1.5"D-GB or 1.9" O.D. | 20"–30" | 0.2–0.6 MPa | 5–50 °C | < 5 FTU | AC 100V – 240V 50–60 Hz | DC 24V/1.5A |
| 65610 (N74Q3) | Meter | ||||||||||||||
| 55510 (N75Q1) | 10 m3/h | Time Clock | - | Top Mount | 2"M | 2"M | - | 4"-8UN | 1.5"D-GB or 1.9" O.D. | 16"–24" | 0.15–0.6 MPa | 5–50 °C | < 20 FTU | AC 100V – 240V 50–60 Hz | DC 24V/1.5A |
