W-ULP, W-BW & W-NF Series Membrane Elements for High & Low Pressure Operations
W-8040 Membrane Element Series

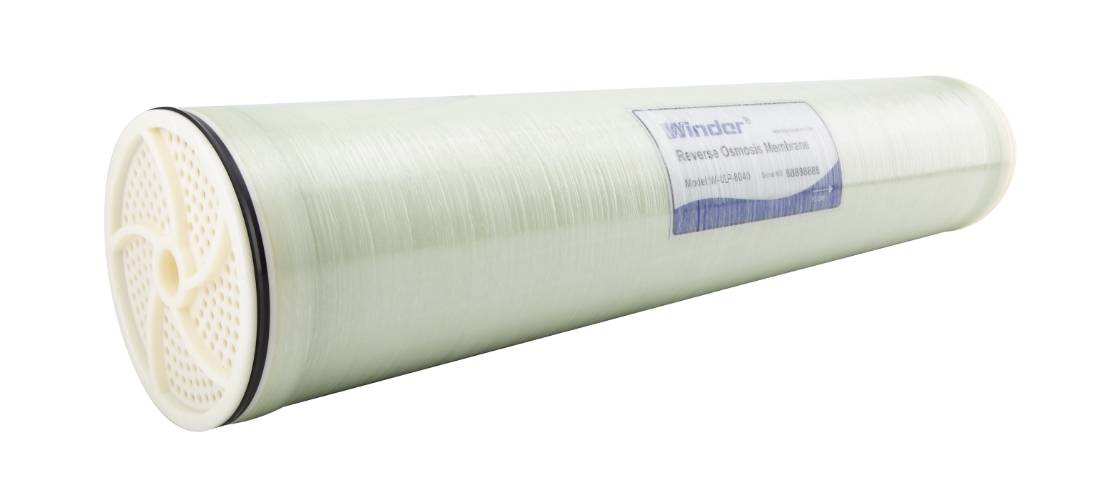

W-ULP-8040 membrane element
ULP membrane elements series can achieve the desired permeate water and high desalination rate under ultra-low/extreme-low pressure operation conditions.
It is suitable for desalination treatment of surface water, groundwater, tap water and municipal water with salt content less than 2000 ppm.

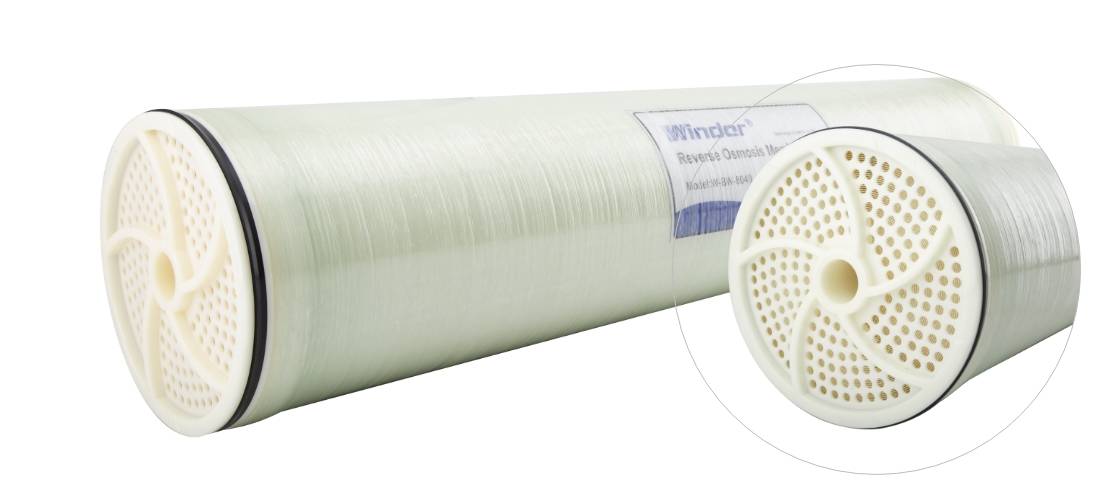

W-BW-8040 membrane element
BW membrane element series have the characteristics of high water production and good desalination performance. It is suitable for desalination treatment of surface water, groundwater, tap water and municipal water with salt content less than 10,000 ppm.
Specification

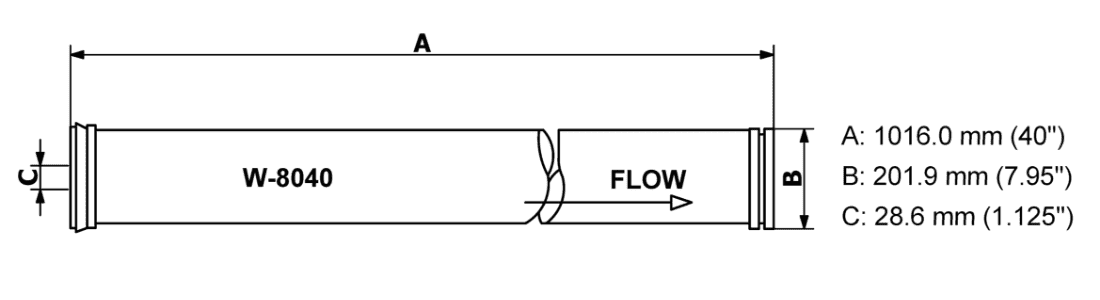

High flow cartridge filter element installation
| Model | W-ULP-8040 | W-BW-8040 |
|---|---|---|
| Active Membrane Ft²(m2) | 400 (37) | 400 (37) |
| Operational pressure psi (MPa) | 150 (1.03) | 255 (1.55) |
| Average yield GPD (m³/d) | 10500 (39.5) | 10500 (39.5) |
| Salt rejection (%) | 99.0 | 99.5 |
| Recovery rate (%) | 15 | 15 |
| Max. Operating pressure psi (MPa) | 600 psi (4.1 MPa) | 600 psi (4.1 MPa) |
| Max. inflow temperature (°C) | 45 °C | 45 °C |
| Max. inflow SDI | 5 | 5 |
| Max. water flow GPM (m³/h) | 75 GPM (17 m³/h) | 75 GPM (17 m³/h) |
| Free chlorine concentration | ＜ 0.1 ppm | ﹤ 0.1 ppm |
| PH Range of Feed Water During Continuous Operation | 2–12 | 2–12 |
| Max. single membrane element pressure drop | 15 psi (0.1 MPa) | 15 psi (0.1 MPa) |
W-4040 Membrane Element Series

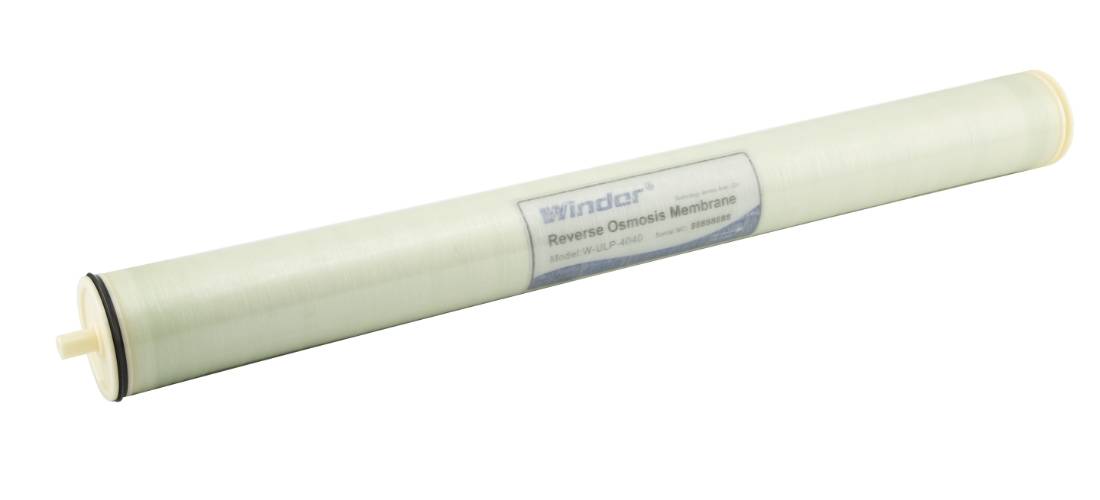

W-ULP-4040 membrane element
ULP membrane elements series can achieve the desired permeate water and high desalination rate under ultra-low/extreme-low pressure operation conditions.
It is suitable for desalination treatment of surface water, groundwater, tap water and municipal water with salt content less than 2000 ppm.

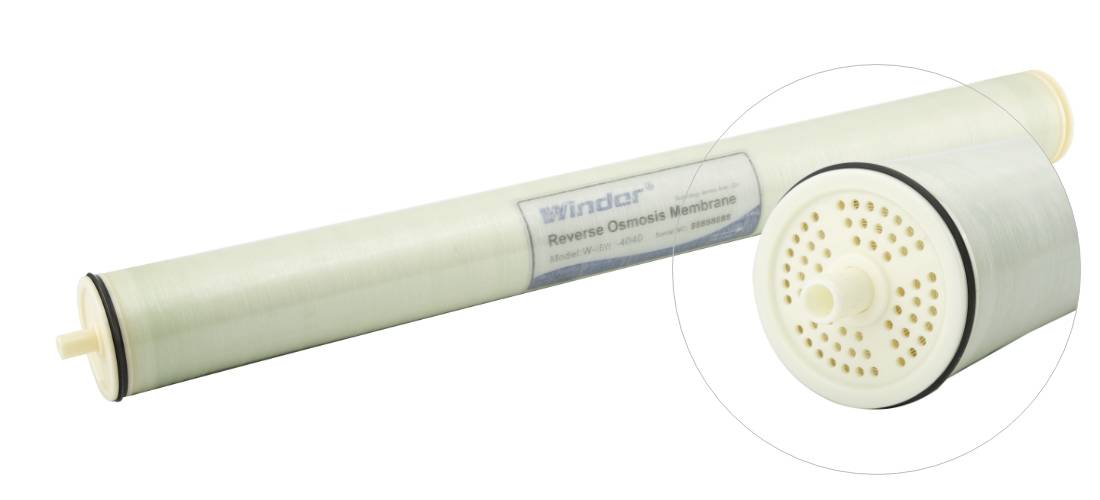

W-BW-4040 membrane element
BW membrane element series have the characteristics of high water production and good desalination performance. It is suitable for desalination treatment of surface water, groundwater, tap water and municipal water with salt content less than 10,000 ppm.
Specification

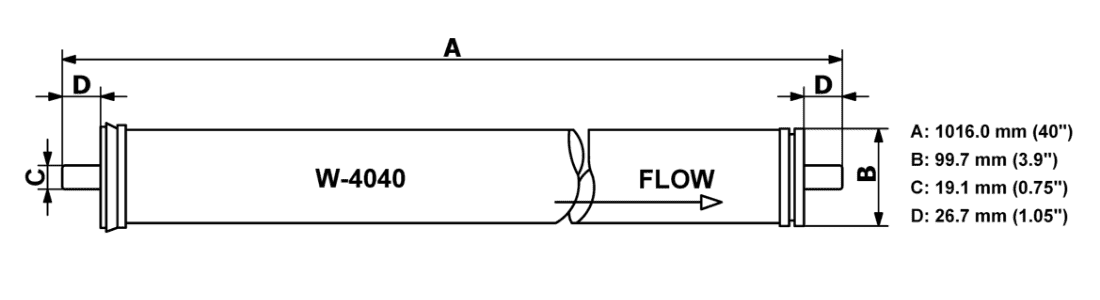

W-4040 membrane element series specification diagram
| Model | W-ULP-4040 | W-BW-4040 |
|---|---|---|
| Active Membrane Ft²(m2) | 85 (7.9) | 85 (7.9) |
| Operational pressure psi (MPa) | 150 (1.03) | 255 (1.55) |
| Average yield GPD (m³/d) | 2000 (7.6) | 2600 (9.8) |
| Salt rejection (%) | 99.0 | 99.5 |
| Recovery rate (%) | 15 | 15 |
| Max. Operating pressure psi (MPa) | 600 psi (4.1 MPa) | 600 psi (4.1 MPa) |
| Max. inflow temperature (°C) | 45 °C | 45 °C |
| Max. inflow SDI | 5 | 5 |
| Max. water flow GPM (m³/h) | 16 GPM (3.6 m³/h) | 16 GPM (3.6 m³/h) |
| Free chlorine concentration | ＜ 0.1 ppm | ﹤ 0.1 ppm |
| PH Range of Feed Water During Continuous Operation | 2–12 | 2–12 |
| Max. single membrane element pressure drop | 15 psi (0.1 MPa) | 15 psi (0.1 MPa) |
W-NF Series

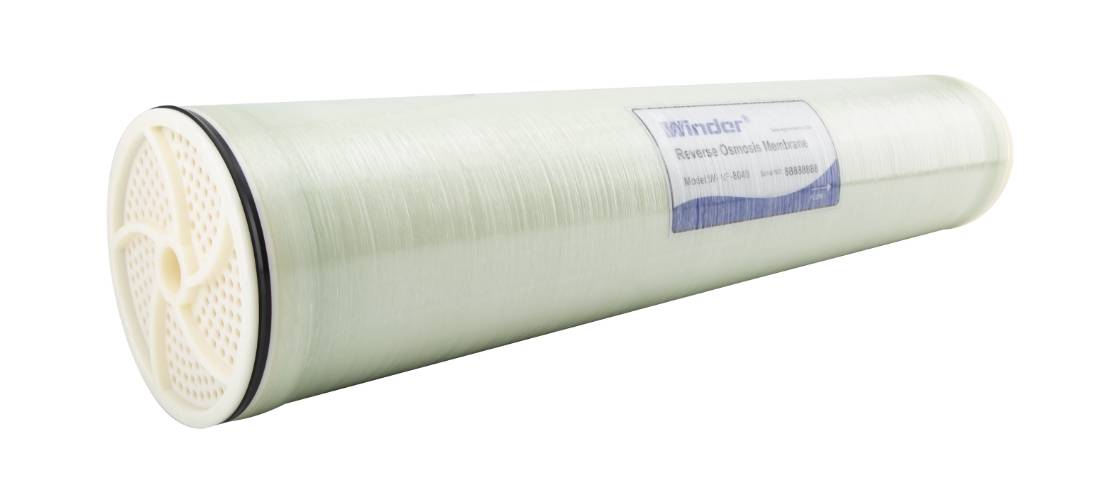

8-inch NF membrane element
NF Series of nanofiltration membrane elements can achieve high permeate water and excellent desalination performance. Therefore, it is suitable for large-scale industrial and municipal water treatment systems. In use, it shows excellent ability to remove pesticides, viruses and bacteria. It has high ability to remove natural organic substances and medium ability to remove total hardness. Through innovative technology, the product has a stronger film surface, strong anti-oxidation performance, and the use of ultralow pressure mode of operation can significantly improve the system and operation economy.
Specification

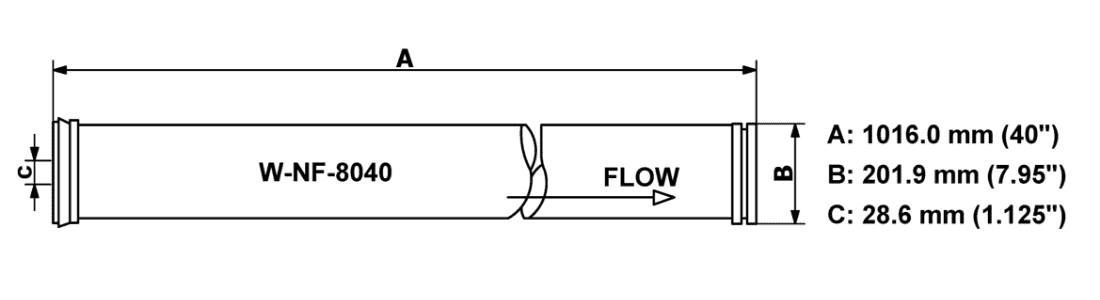

W-NF-8040 membrane element series specification diagram
| Model | 85 (7.9) |
|---|---|
| Active Membrane Ft²(m2) | 75 (0.52) |
| Operational pressure psi (MPa) | 9000 (33.9) |
| Average yield GPD (m³/d) | 50–75 |
| Salt rejection (%) | 15 |
| Recovery rate (%) | 600 psi (4.1 MPa) |
| Max. Operating pressure psi (MPa) | 45 °C |
| Max. inflow temperature (°C) | 5 |
| Max. inflow SDI | 75 GPM (17 m³/h) |
| Max. water flow GPM (m³/h) | ﹤ 0.1 ppm |
| Free chlorine concentration | 2–12 |
| PH Range of Feed Water During Continuous Operation | 15 psi (0.1 MPa) |
| Max. single membrane element pressure drop | 45 °C |
