ROHONE 8" FRP RO Membrane Housing – 60,000 Times of Fatigue Test

ROHONE series membrane housing with 8" inner diameter.

ROHONE Series FRP Membrane Housing

  • Click here to see the certifications we have got.

  • Click here to see what kind of test method adopted by Cheng Da.

  • Click here to see the service commitments promised by Cheng Da.

ROHONE ® 成航, as well as Winder®, is another brand series belonged to Cheng Da. All FRP membrane housings adopt imported material and finished through special processing technology. The applicable working pressures are 300 PSI and 450 PSI. It can be capable of building in membrane elements from 1 section to 7 sections.

ROHONE ® 成航 series FRP membrane housings can stand more than 60,000 times of fatigue test but remain intact. Our FRP membrane housings are applicable to multiple standard membrane elements, e.g. Filmtec, Hydranautics, Osmonics, Koch, Toray, CSM, Vontron and BDX. And non-standard products could be tailor-made to meet the satisfaction of your special projects.

8" Rohone FRP RO membrane housing catalog

Products

8 Inch side Port

300 PSI
2.1 MPa
300 PSI
2.1 MPa
450 PSI
3.1 MPa

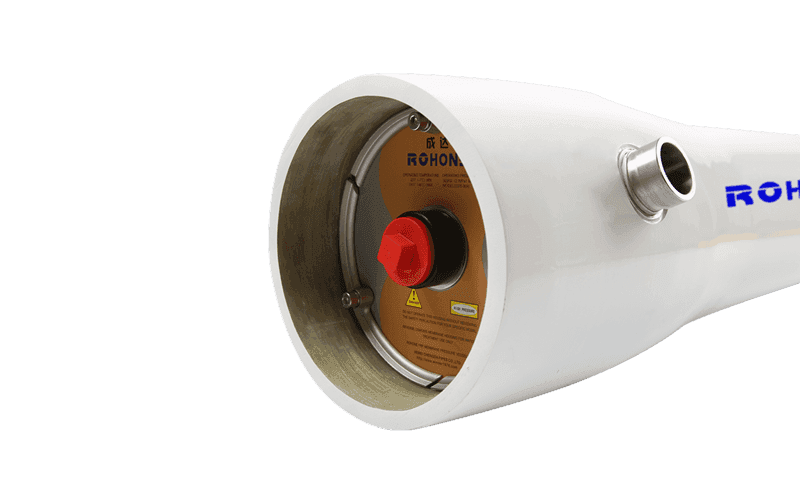

ROHONE 8" membrane housing with honeycomb aluminum head seal.

8 Inch side Port

ROHONE 8" membrane housing with honeycomb aluminum head seal. Working pressure is 300 PSI.

ROHONE 8" membrane housing with ABS head seal.

8 Inch side Port

ROHONE 8" membrane housing with ABS head seal. Working pressure is 300 PSI.

Drawing

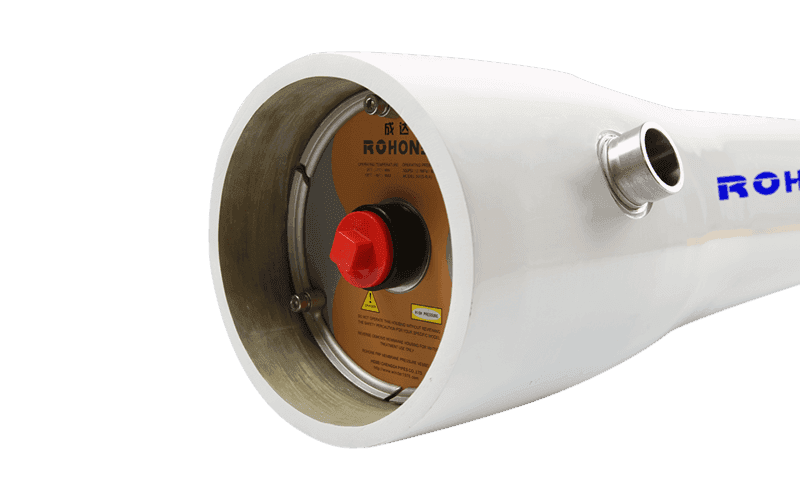

ROHONE 8" membrane housing with aluminium head seal.

8 Inch side Port

ROHONE 8" membrane housing with aluminium head seal. Working pressure is 450 PSI.

Feature

  • High sealing pressure performance.

  • Innovative production process.

  • Test every membrane housing, not sampling.

  • Fatigue test of 60,000 times without damage.

  • Certified by ISO 9001:2000.

  • Shorter delivery time.

Components

Component assembly diagram of 8" side entry

A drawing picture about the components diagram of 8" FRP membrane housing with side port.
  1. Permeate Port

  2. Baffle Fixing Bolts

  3. Link Stopper

  4. Head Seal

  5. Head Seal V Ring

  6. Head Seal O Ring

  7. Thrust Cone

  8. Adaptor

  9. Adaptor O Ring

Specification

MaterialFiberglass and epoxy.
ProcessWinded
Working Pressure300 PSI, 450 PSI
ConnectionSide port
Element Length40" × (1–7)
Operating Temperature-10 °C – 49 °C
Operating pH Range3–11
Cleaning pH Range2–12 (≤ 30 min)
CertificateISO 9001:2000
ColorOriginal or customized

Application

8" FRP membrane housing is professional for industrial waste water treatment, seawater desalination, brackish water desalination and RO system. Main applications include electronics, electric power, food & beverage, metallurgy, chemical and pharmaceutical.
