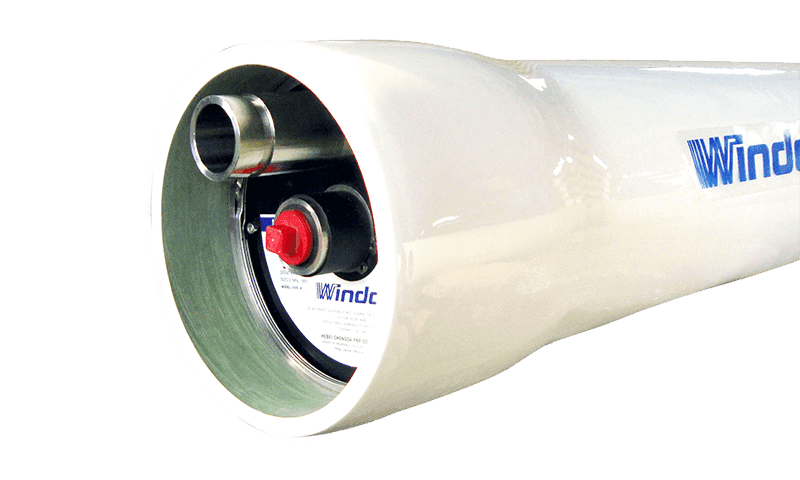

Winder 8" FRP RO Membrane Housing – Smooth Inner Surface, ASME Certified

White membrane housing with 8" inner diameter made in Winder.

8" FRP membrane housing

  • Click here to see the certifications we have got.

  • Click here to see what kind of test method adopted by Cheng Da.

  • Click here to see the service commitments promised by Cheng Da.

Winder® 8" FRP RO membrane housings working pressure widely ranges from 150 PSI to 1200 PSI, side port or end port.

Winder FRP RO housing since 2006, ASME certification in 2014:

  • 100% quality assurance test with 1.1 times of working pressure maintained for at least five minutes, we could guarantee the safety and no leakage. Not sampling test.

  • Quality Assurance

    • Burst test with 6 times of its design pressure;

    • 100000 times cycle test.

Winder® series FRP membrane housings are applicable to multiple standard membrane elements, E.g. Filmtec, Hydranautics, Osmonics, Koch, Toray, CSM, Vontron and BDX, etc. And non-standard products could be tailor-made to meet the satisfaction of your special projects.

 New style Winder FRP RO membrane housing Chengda FRP RO membrane housing brochure

Product Center

  • 8 Inch End Port

  • 8 Inch Side Port

150 PSI
1.0 MPa
300 PSI
2.1 MPa
450 PSI
3.1 MPa
600 PSI
4.1 MPa
1000 PSI
6.9 MPa
1200 PSI
8.3 MPa
8 inch end port membrane housing.

8 Inch End Port

White 8" membrane housing with end entry made in Winder®. Working pressure is 150 PSI.

Drawing
8 inch end port membrane housing.

8 Inch End Port

White 8" membrane housing with end entry made in Winder®. Working pressure is 300 PSI.

Drawing
8 inch end port membrane housing.

8 Inch End Port

White 8" membrane housing with end entry made in Winder®. Working pressure is 450 PSI.

Drawing
8 inch end port membrane housing.

8 Inch End Port

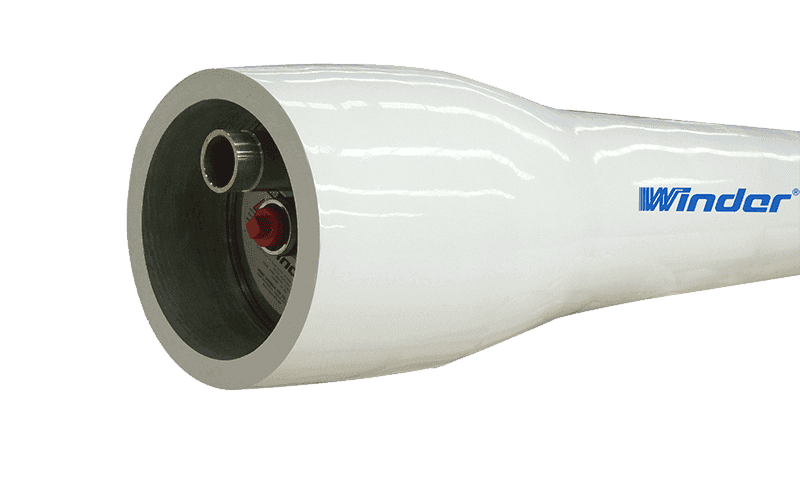

White 8" membrane housing with end entry made in Winder®. Working pressure is 600 PSI.

Drawing
8 inch end port membrane housing.

8 Inch End Port

White 8" membrane housing with end entry made in Winder®. Working pressure is 1000 PSI.

Drawing
8 inch end port membrane housing.

8 Inch End Port

White 8" membrane housing with end entry made in Winder®. Working pressure is 1200 PSI.

Drawing
150 PSI
1.0 MPa
300 PSI
2.1 MPa
450 PSI
3.1 MPa
600 PSI
4.1 MPa
1000 PSI
6.9 MPa
1200 PSI
8.3 MPa
8 inch side port membrane housing.

8 Inch Side Port

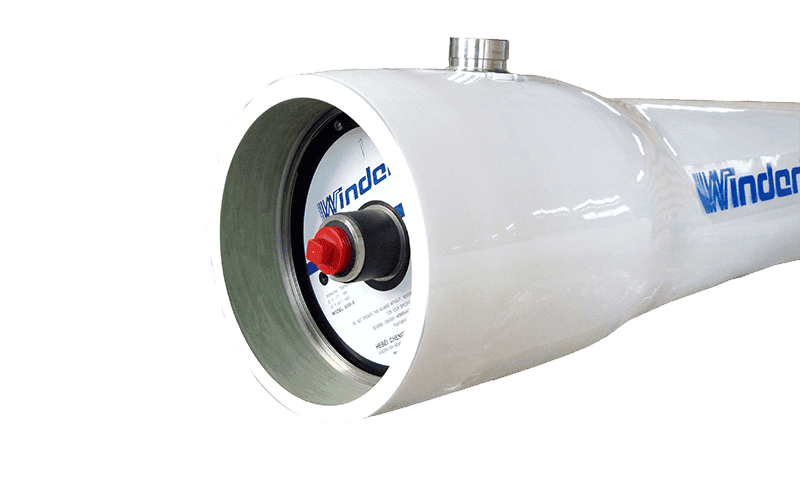

White 8" membrane housing with side entry made in Winder®. Working pressure is 150 PSI.

Drawing
8 inch side port membrane housing.

8 Inch Side Port

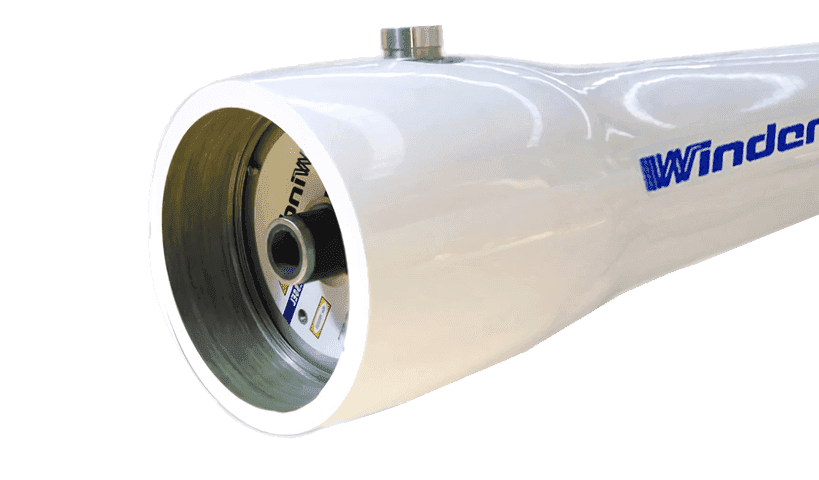

White 8" membrane housing with side entry made in Winder®. Working pressure is 300 PSI.

Drawing
8 inch side port membrane housing.

8 Inch Side Port

White 8" membrane housing with side entry made in Winder®. Working pressure is 450 PSI.

Drawing
8 inch side port membrane housing.

8 Inch Side Port

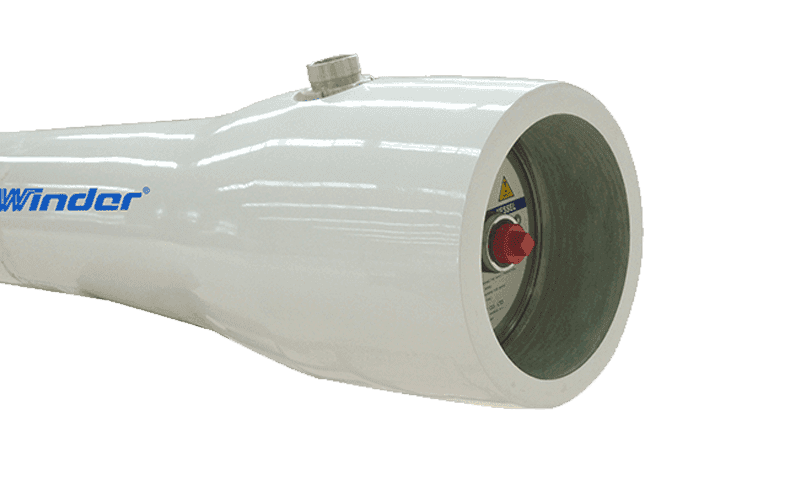

White 8" membrane housing with side entry made in Winder®. Working pressure is 600 PSI.

Drawing
8 inch side port membrane housing.

8 Inch Side Port

White 8" membrane housing with side entry made in Winder®. Working pressure is 1000 PSI.

Drawing
8 inch side port membrane housing.

8 Inch Side Port

White 8" membrane housing with side entry made in Winder®. Working pressure is 1200 PSI.

Drawing

Feature

  • Composite construction is anti-wearable.

  • Test every membrane housing, not sampling.

  • Multi-porting option.

  • Electrically non-conductive.

  • High sealing pressure performance.

  • Unique quick locking system.

  • Mirror inner wall and brightly surface.

  • Standard and non-standard are all available.

components

  • 8" end entry

  • 8" side entry

Component assembly diagram of 8" end entry

A drawing picture about the components diagram of 8" FRP membrane housing with end port.
All the attachments of 8" end entry FRP membrane housing are summarized here.
  1. Permeate Port

  2. Three Turns Locking Ring

  3. Permeate Retaining Ring

  4. F/C Port

  5. Bearing Plate

  6. Head Seal

  7. Head Seal O Ring

  8. Adaptor

  9. Adaptor O Ring

  10. Head Seal Ring

  11. Thrust Cone

Specification of 8" End Entry
Model No.Design pressure
           (PSI)
Operating temperatureConnectionElement length
W80E150150-10°C – 66°CEnd port40" × (1 – 7)
W80E300300-10°C – 66°CEnd port40" × (1 – 7)
W80E450450-10°C – 66°CEnd port40" × (1 – 7)
W80E600600-10°C – 66°CEnd port40" × (1 – 7)
W80E10001000-10°C – 66°CEnd port40" × (1 – 7)
W80E12001200-10°C – 66°CEnd port40" × (1 – 7)
W80E15001500-10°C – 66°CEnd port40" × (1 – 7)
W80E18001800-10°C – 66°CEnd port40" × (1 – 7)
W80E20002000-10°C – 66°CEnd port40" × (1 – 7)

Component assembly diagram of 8" side entry


All the attachments of 8" side entry FRP membrane housing are summarized here.
  1. Three Turns Locking Ring

  2. Permeate Port

  3. Permeate Retaining Ring

  4. Bearing Plate

  5. Head Seal

  6. Head Seal Ring

  7. Head Seal O Ring

  8. Adaptor

  9. Adaptor O Ring

  10. Thrust Cone

Specification of 8" Side Entry
Model No.Design pressure
           (PSI)
Operating temperatureConnectionElement length
W80S150150-10°C – 66°CSide port40" × (1 – 8)
W80S300300-10°C – 66°CSide port40" × (1 – 8)
W80S450450-10°C – 66°CSide port40" × (1 – 8)
W80S600600-10°C – 66°CSide port40" × (1 – 8)
W80S10001000-10°C – 66°CSide port40" × (1 – 8)
W80S12001200-10°C – 66°CSide port40" × (1 – 7)
W80S15001500-10°C – 66°CSide port40" × (1 – 7)
W80S18001800-10°C – 66°CSide port40" × (1 – 7)
W80S20002000-10°C – 66°CSide port40" × (1 – 7)





Application

8" FRP membrane housing is professional for industrial waste water treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.
